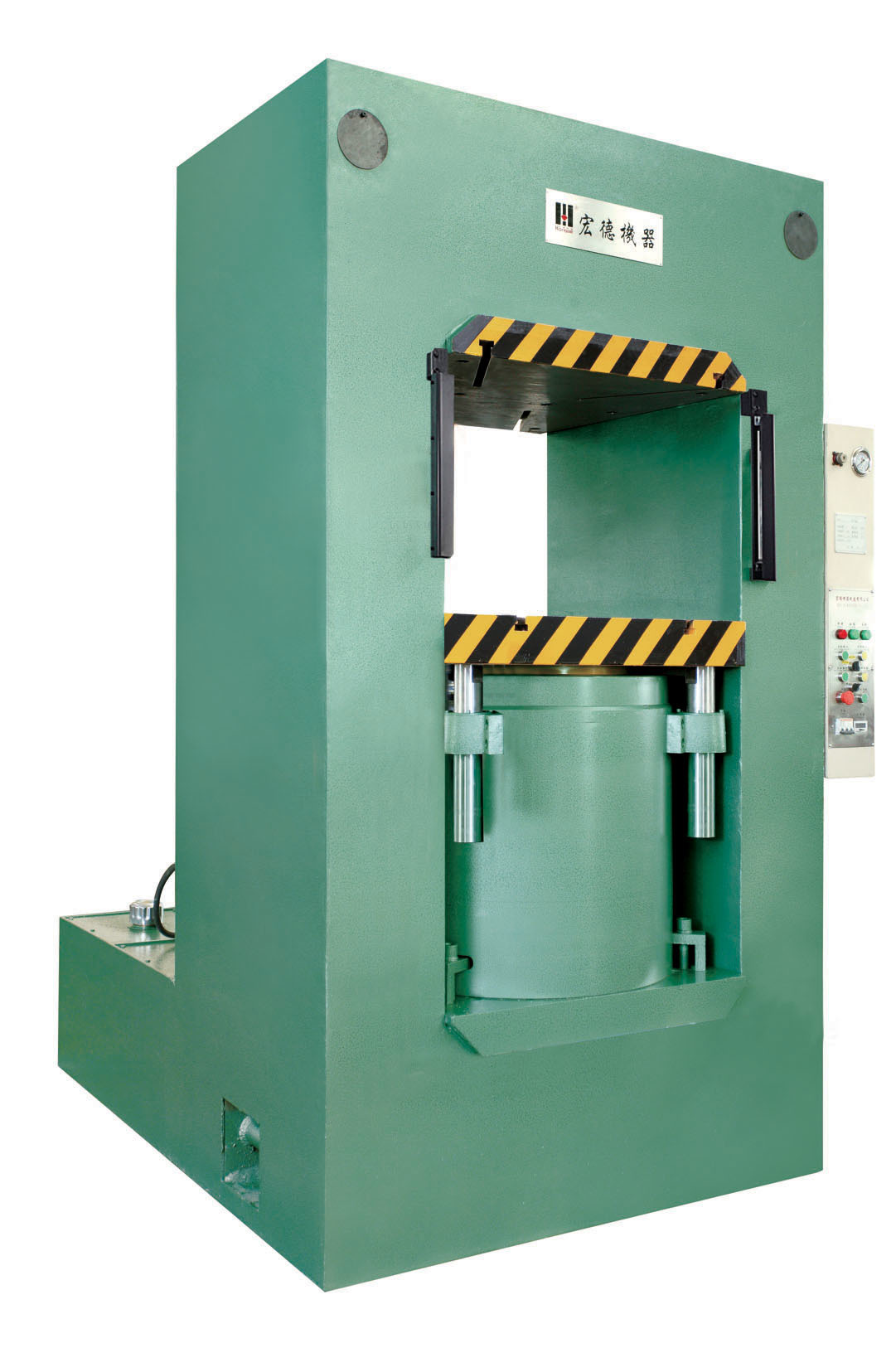

Frame upward transfer type hydraulic press, Guangdong hydraulic press
Guangdong hydraulic press manufacturer said Overview: This series of hydraulic press is suitable for hardware, clocks and watches, electrical appliances, glasses, jewelry, handicrafts, powder metallurgy and many other industries, especially suitable for badge and coin pressing process.
I. Guangdong hydraulic press manufacturer said Overview:
This series of hydraulic press is suitable for many industries such as hardware, watch, electric appliance, glasses, jewelry, handicraft, powder metallurgy, etc. It is especially suitable for badge and coin pressing process. According to its function options are divided into: ordinary E type (with empty range fast, slow speed close to the parts making function), F type (with two functions of E type and return material function).
Second, Guangdong hydraulic press manufacturer said characteristics:
1, using the whole steel plate welded frame, good rigidity, high compressive strength.
2, the overall structure of the machine, occupy little space, safe and convenient operation, smooth work, fast speed, high efficiency.
3、Adopt imported hydraulic components and electrical components, durable, to ensure stable operation of the machine.
4、The electrical system adopts German Siemens PLC control, easy and convenient to operate, reliable operation.
5、Configuration of safety photoelectric protection device and over-stroke protection function, to achieve man-machine safety production.
A.F type has
|Max. working pressure of hydraulic system||Mpa||20||25||25||25||25||25||Before booster20||Before booster20||Before booster20|
|After pressurization40||After pressurization40||After pressurization40|
|Max. stroke of movable table||mm||140||160||160||160||160||160||160||160||250|
|Max. distance from worktable to upper beam||mm||350||380||380||450||500||600||650||700||900|
|Rapid rise speed of main cylinder||mm/s||135||140||140||220||150||140||65||65||65|
|Main cylinder pressurized rise speed||mm/s||4||2-6.5||1.5-4||1.5-4||1.4-4||1.2-3.4||Before booster3.6||Before booster3||Before booster2.4|
|After pressurization1.9||After pressurization1.5||After pressurization1.2|
|Rapid return speed of main cylinder||mm/s||150||120-210||100-170||130-220||95-260||50-150||67||58||52|
|Nominal pressure of discharge cylinder||KN||60||60||90||100||100||150||200||200||300|
|Effective area of working table||Around||mm||416||530||594||694||865||950||1010||1170||1360|
|Before and after||mm||405||510||580||670||850||950||1010||1160||1360|
|Oil pump flow rate||L/min||14.4||12-36||12-36||20-58||31-90||31-90||49/49||49/49||49/49|
|Contour size (left and right*front and back*height)||mm||900*1000*1400||1100*1200*1400||1300*1450*1785||1500*1600*220||1800*1550*2585||2030*220*2770||2200*2340*3085||2400*2600*3270||2430*3150*4100|
|Weight of the whole machine (approx.)||KG||1650||2800||3500||5500||13500||15700||22500|
